A0 LED Display Pocket & Ceiling-to-Floor Kit (Rod System / Ready to Use)

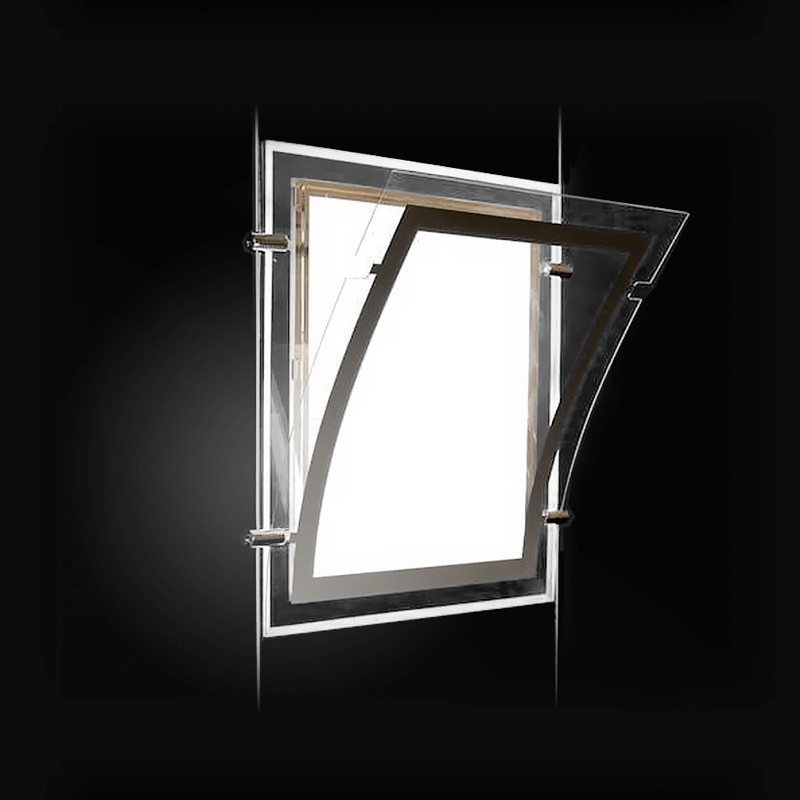

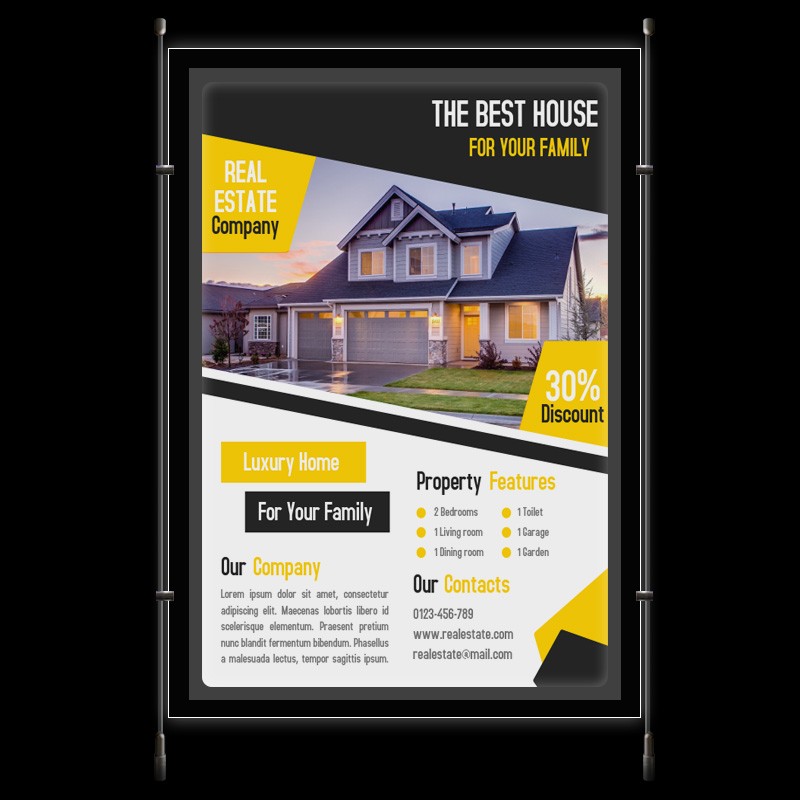

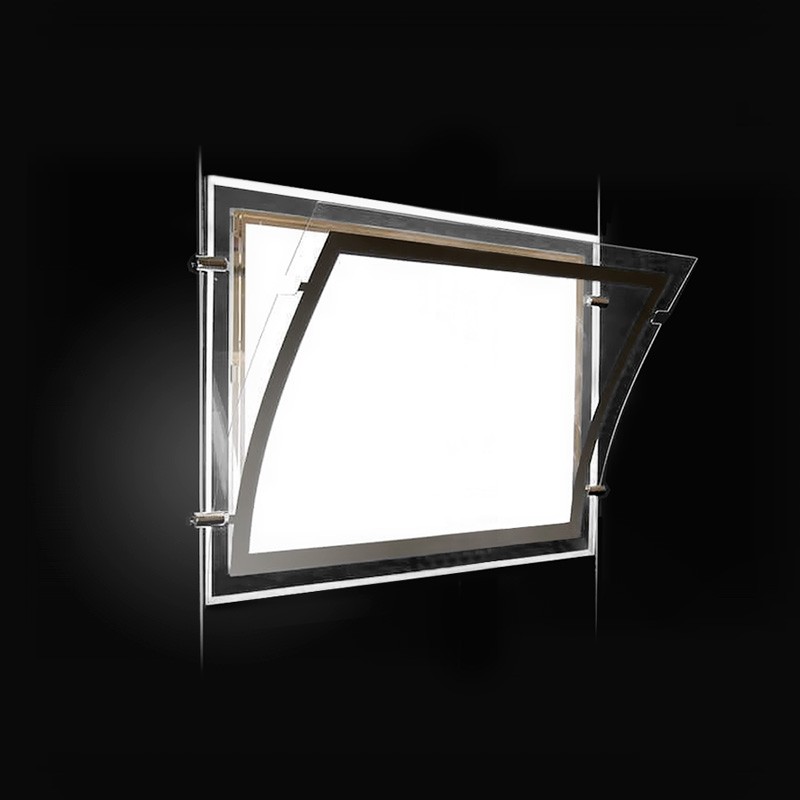

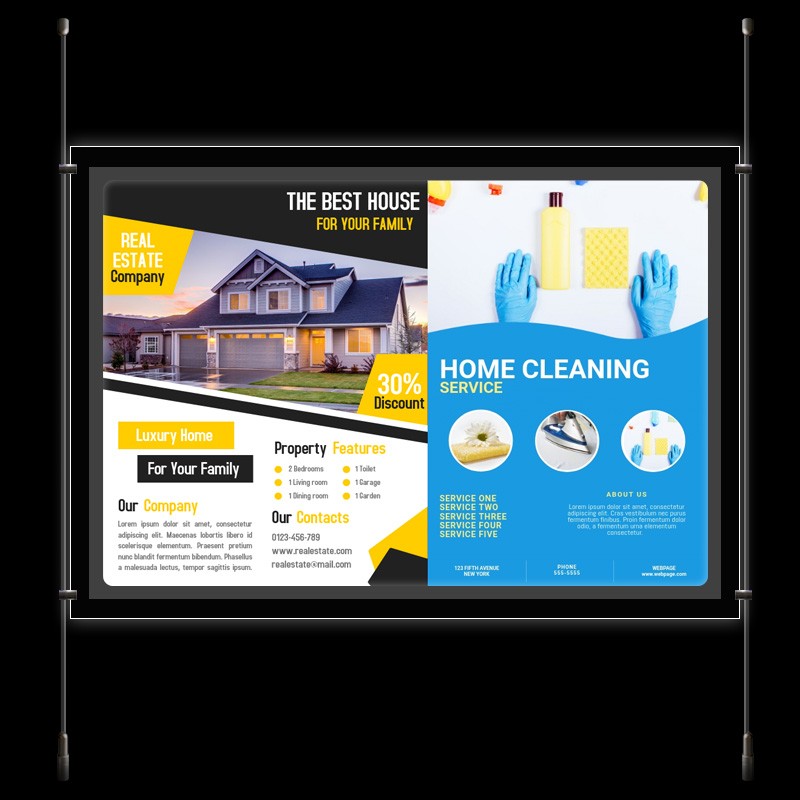

Ready to use LED Display Pockets are available in Portrait & Landscape orientation; A0 standard size. Dual-sided acrylic holders allow 2 Posters to be inserted into a single pocket, enabling adverts to be displayed inward & outward facing in your window display! Pocket insert size: 841mm x 1189mm. Rod Display System with all chrome fittings, and 1.5m long 6mm Steel Rods. Rods have threaded ends, enabling multiple rods to be screwed together to create longer lengths!

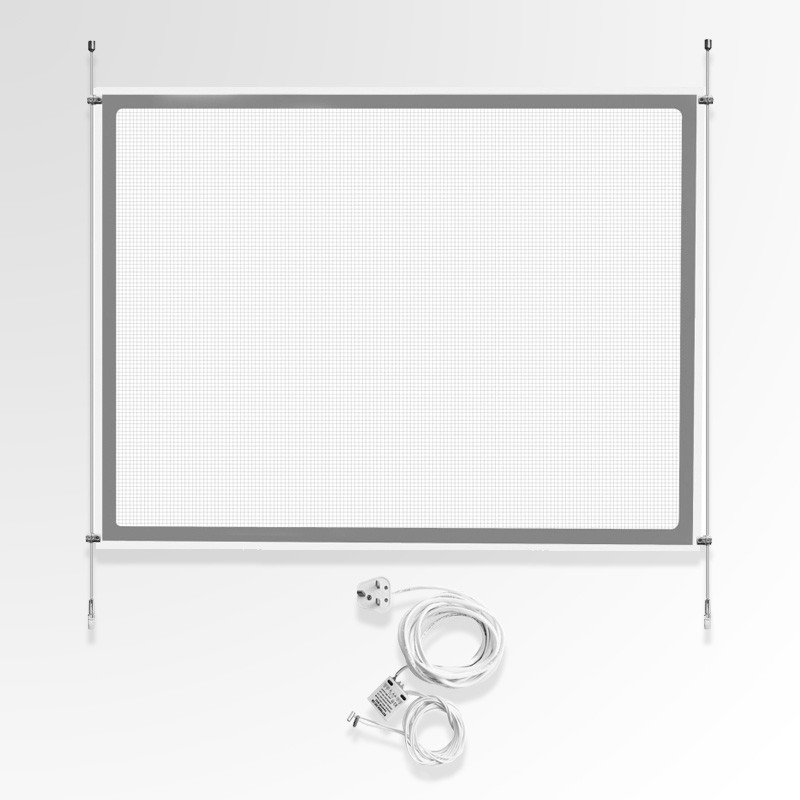

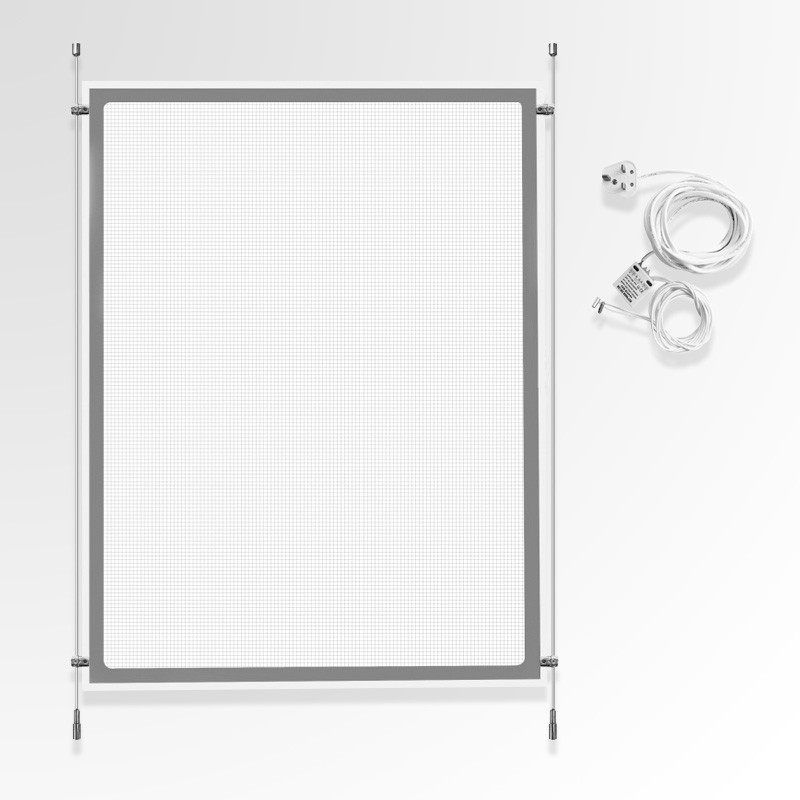

Complete A0 Display LED Pocket Kits include:

• 1x LED A0 Pockets, Portrait or Landscape
• LED Driver / Transformer & 5m electrical wiring with 3 pin plug (UK)
• 2x Power Connectors
• 2x Ceiling to Floor Display Rod System Sets, including 4x 1.5m Rods
• Display Pocket Supports, 4 per Panel (Attach Pockets to Suspended Rods)

Installing the Rod Display System:

1. Seperate a ceiling fitting, by unscrewing the brass screw mounts concealed inside
2. Screw the brass mount into the ceiling, and reattach the ceiling fittings shell & rod
3. With the rod now suspended, align the position for the floor fitting
4. Un-screw & seperate the floor fitting, and screw the wider/bottom half into the floor
5. Onto the rod, thread 1 Power Connector, the floor fitting top, and finally the tension spring, in that order
6. Attach the Stopper to the end of the rod. Cut off any access rodding once the required length is known
7. Rettach the floor fittings top to the bottom piece
8. Repeat above steps for the second ceiling to floor rod (Use an LED pocket's width as a guide!)
9. Attach your LED Display Pockets to the suspended rods, using the Supports provided (Allen / Hex Key Supplied)

Although this is a safe low-voltage product, please remember to UNPLUG & SWITCH OFF any power while installing!

Installing LED Driver / Transformer:

1. Attach a naked-end wire to one of the Power Connector on a suspended rod
2. Secure the Power Connector by tightening the small grub-screw on the relevant side
3. Attach the other wire to the Power Connector of the opposite rod
4. Secure the Power Connector to the wire
5. Finally plug the transformer into the power socket
