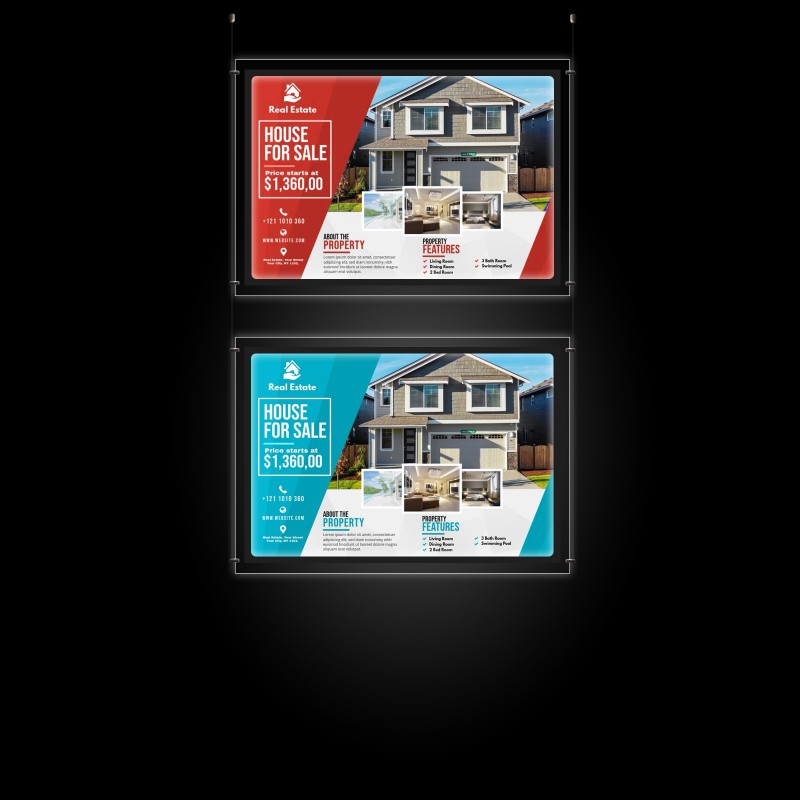

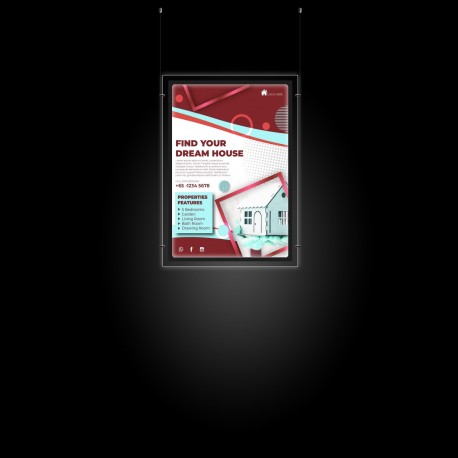

A1 LED Display Pocket & Ceiling Hanging Kit (Ready to Use / Complete System)

A1 LED Display Pocket & Ceiling Hanging Kits are available with portrait & landscape panels; A1 standard size. Dual-sided acrylic holders support 2 posters in a single pocket, with adverts visible on both sides. Perfect for shop floor signage, advertisements, and window displays! Pocket insert size: 841mm x 594mm. The cable display system features chrome fittings and 1.5mm steel cables, 2m in length.

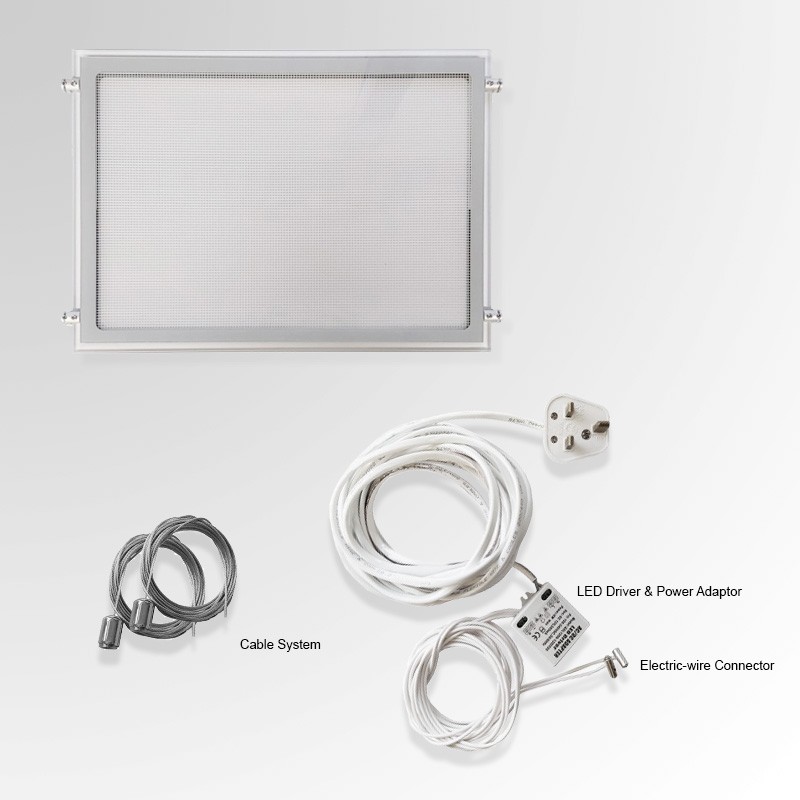

Complete A1 Display LED Pocket Kits - include:

• LED A1 Pocket, Portrait or Landscape (up to 2 Holder per kit)
• LED Driver / Transformer & 5m electrical wiring with 3 pin plug (UK)
• 2x Power Connectors
• 2x Ceiling Mounted Cable System Sets, including 2m Steel Cables
• Display Pocket Supports, 4 per Panel (Attach Pockets to Suspended Cables)

Installing the Ceiling Mounted Cables:

1. Seperate a ceiling fitting, by unscrewing the brass screw mounts concealed inside
2. Screw the brass mount into the ceiling, and reattach the ceiling fittings shell & cable
3. Thread the cable into 1 Power Connector, move it to the top & tighten it's grub-screw
4. Repeat above steps for the second cable (Use an LED pocket's width as a guide!)
5. Attach your LED Display Pockets to the suspended cables, using the Supports provided (Allen / Hex Key Supplied)
6. Cut away any access cable length if necessary

Although this is a safe low-voltage product, please remember to UNPLUG & SWITCH OFF any power while installing!

Installing LED Driver / Transformer:

1. Attach a naked-end wire to one of the Power Connector on a suspended cable
2. Secure the Power Connector by tightening the small grub-screw on the relevant side
3. Attach the other wire to the Power Connector of the opposite cable
4. Secure the Power Connector to the wire
5. Finally plug the transformer into the power socket
